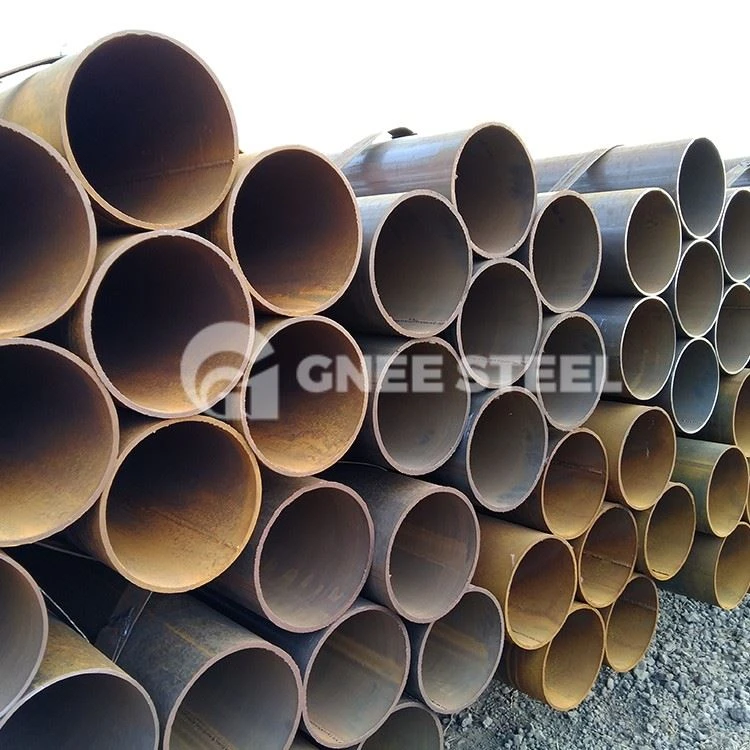

L320 Low Alloy High Tensile Structural Steel Pipe
L320 low carbon line pipe Description
L320 stands for low-alloy high-strength pipeline steel, and its minimum yield strength is 320MPa, which meets the strength requirements of API 5L and other standards for pipeline steel.
Chemical composition: It is based on ferrite-pearlite, with a low carbon content (<=0.16%), and alloy elements such as manganese and silicon are added to optimize the toughness and welding performance of the material.
Production process Straight seam welding process: The strip is rolled longitudinally and formed by straight seam submerged arc welding (such as double-sided submerged arc welding). The weld is distributed in a straight line along the axis of the steel pipe, which is suitable for the production of small and medium-sized diameter pipes (such as DN32~DN400).
Forming characteristics: The production process includes uncoiling, leveling, forming, welding, sizing and other steps, supporting customized outer diameters (such as 20x20mm, 40x40mm, etc.) and wall thicknesses to meet different engineering needs. Performance advantages
Mechanical properties: Yield strength >=320MPa, tensile strength >=460MPa, suitable for medium and high pressure fluid (such as water, natural gas, oil) transportation scenarios.
Corrosion resistance: Low alloy composition combined with surface anti-corrosion treatment (such as epoxy coating, PE protective layer) can cope with corrosive conditions such as wet soil and industrial environment.
High dimensional accuracy: The straight seam welding process can control the uniformity of the weld, reduce defects in the heat-affected zone, and improve the overall reliability of the pipeline.
L320 Welded Round Steel Pipe Specification
| GB/T9711 | |
| 219mm – 3000mm | |
| 6.0 - 22mm | |
| 6 – 12m | |
| Q235A,Q235B,10#,20#,Q345(16Mn),L245(B),L290(X42),L320(X46),L360(X52),L390(X56),L415(X60),L450(X65),L485(X70),L555(X80) | |
| Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer's requirement | |
| Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test. | |
| EN 10204/3.1B |
L320 LSAW Pipe
A:Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
A:Of course, we welcome customers from all over the world to visit our factory.
A:You can leave us message, and we will reply every message in time. Or we may talk on line.
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept the third party inspection absolutely.
